Armatures

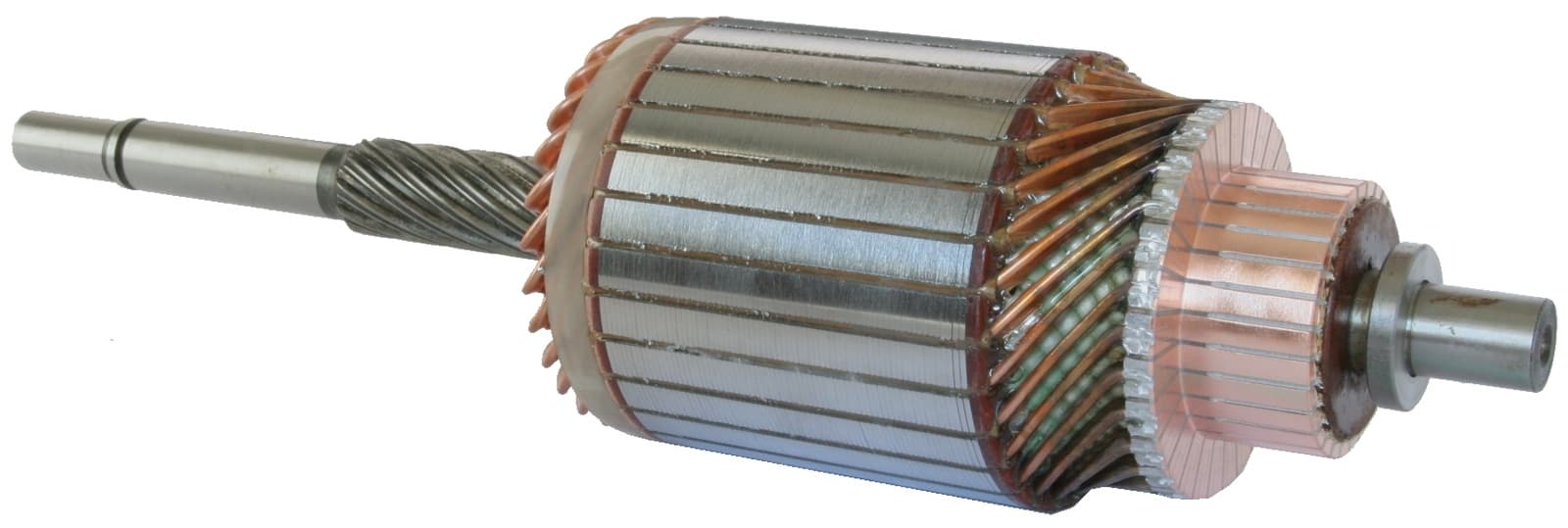

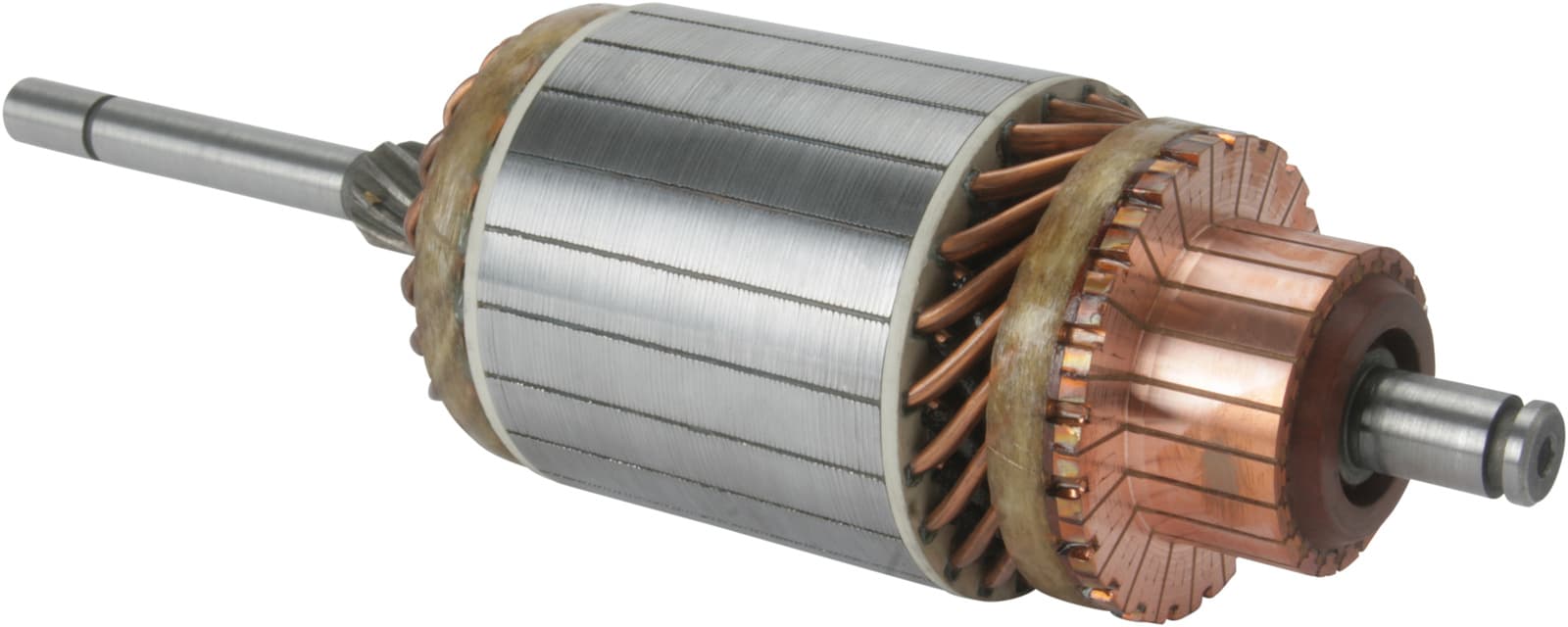

F032130061 - ArmatureTrade number 130061
kW 0.8, Voltage 12, Commutator Diameter 36.00, Commutator Distance 20.20, OD/spline/teeth 17.00, No./bars 23, Commutator Height 23.50, Bar length 4.00, Commutator Inner Diameter 16.00, Bar Distance 2.60, Core Diameter 60.00, Shaft length 222.00, Bar Cross Distance 36.80, Commutator End Shaft Diameter 12.40, Bar Lane Height 16.60, Spline Teeth Length 25.50, No./splines 10, Drive End Inside Shaft Diameter Outside 11.90, Commutator Outer Diameter 44.50, Rotation CW

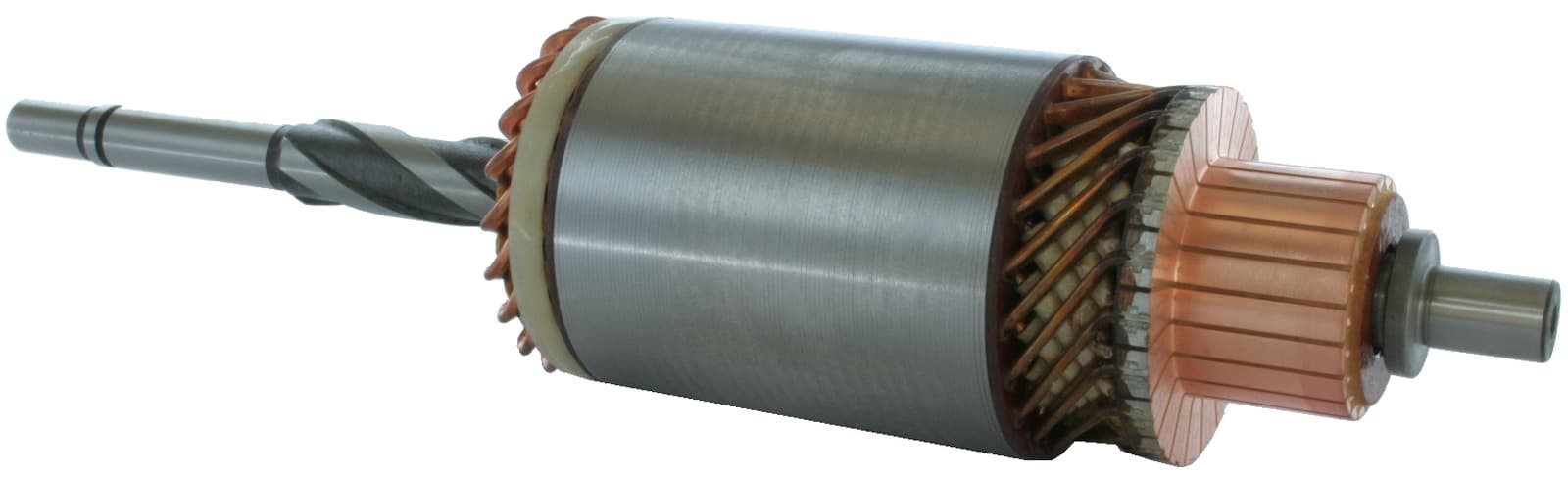

F032130109 - ArmatureTrade number 130109
kW 1.4, Voltage 12, Commutator Diameter 42.00, Commutator Distance 27.40, OD/spline/teeth 18.30, No./bars 29, Commutator Height 26.50, Core Diameter 73.00, Shaft length 300.00, Commutator End Shaft Diameter 14.00, Bar Lane Height 21.70, Spline Teeth Length 56.80, No./splines 3, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 61.80, Drive End Inside Shaft Diameter 14.15, Remarks 9 V: HC-CARGO 133084., Shaft Diameter 18.85

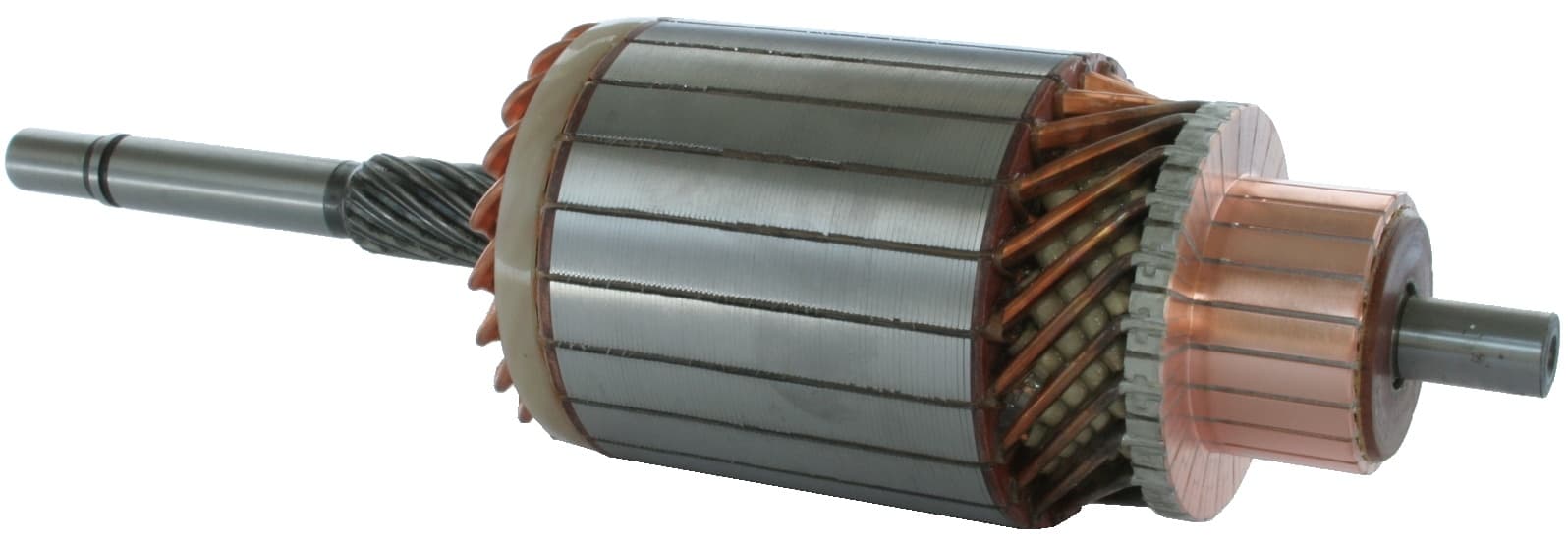

F032130110 - ArmatureTrade number 130110
kW 1.8, Voltage 12, Commutator Diameter 42.20, Commutator Distance 26.90, OD/spline/teeth 18.20, No./bars 29, Commutator Height 26.00, Core Diameter 73.00, Shaft length 300.00, Commutator End Shaft Diameter 14.00, Bar Lane Height 19.60, Spline Teeth Length 48.80, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 61.90, Drive End Inside Shaft Diameter 14.15, Rotation CW, Remarks 9 V: HC-CARGO 133085., Shaft Diameter 18.85

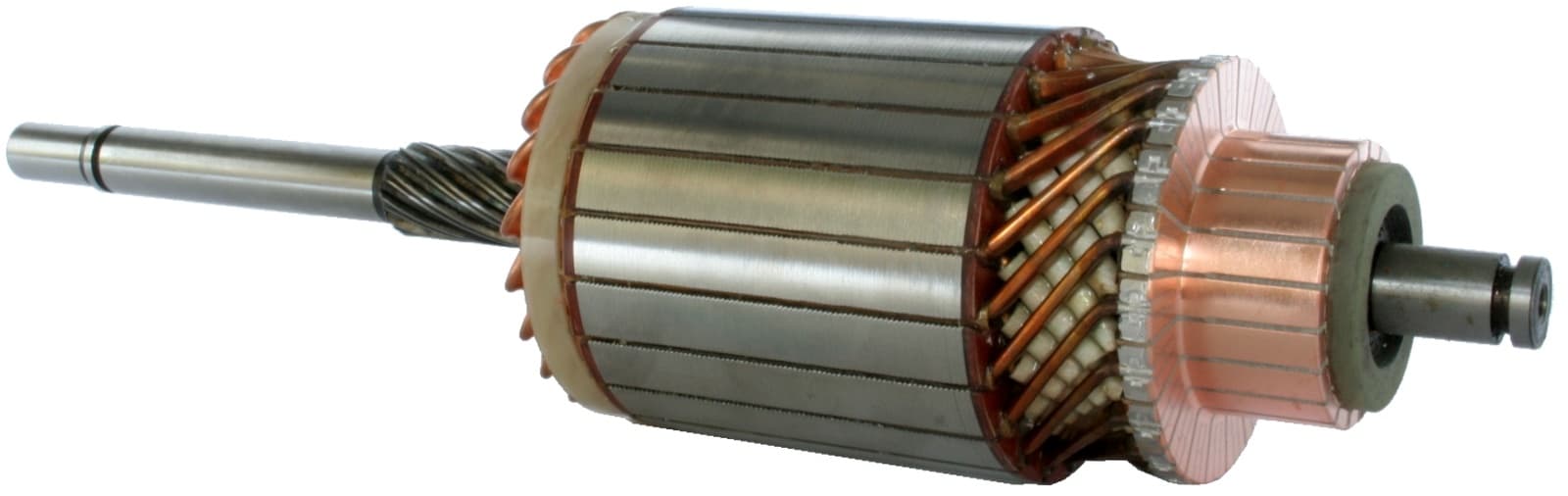

F032130113 - ArmatureTrade number 130113
kW 2.4, Voltage 12, Commutator Diameter 43.00, Commutator Distance 22.40, OD/spline/teeth 18.00, No./bars 21, Commutator Height 33.00, Bar length 10.50, Commutator Inner Diameter 15.80, Bar Distance 3.45, Core Diameter 75.00, Shaft length 282.00, Bar Cross Distance 42.50, Commutator End Shaft Diameter 12.50, Bar Lane Height 23.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.00, Commutator Outer Diameter 63.20, Drive End Inside Shaft Diameter 12.00, Rotation CW, Remarks 9 V: HC-CARGO 131933., Shaft Diameter 18.90

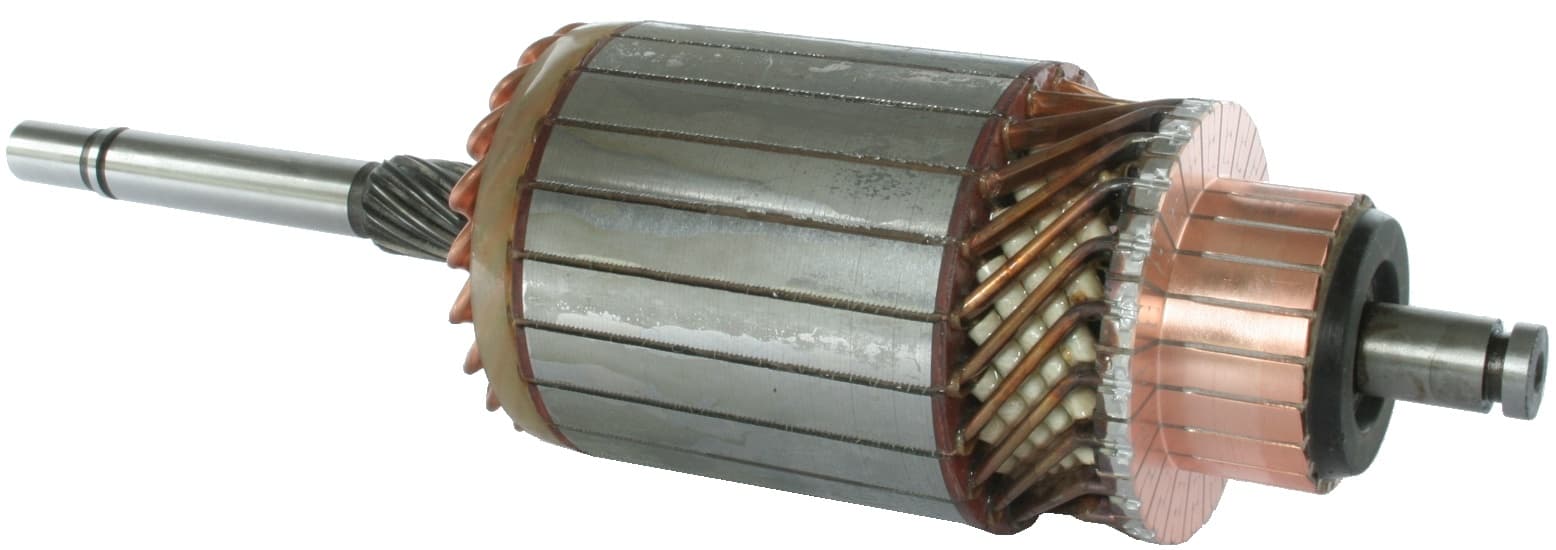

F032130114 - ArmatureTrade number 130114
kW 2.4, Voltage 12, Commutator Diameter 43.00, Commutator Distance 21.40, OD/spline/teeth 18.00, No./bars 21, Commutator Height 33.00, Bar length 10.50, Commutator Inner Diameter 15.80, Bar Distance 3.45, Core Diameter 75.00, Shaft length 288.00, Bar Cross Distance 42.50, Commutator End Shaft Diameter 12.50, Bar Lane Height 23.00, Spline Teeth Length 40.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.40, Commutator Outer Diameter 63.20, Drive End Inside Shaft Diameter 14.10, Rotation CW, Remarks 9 V: HC-CARGO 133086., Shaft Diameter 18.85

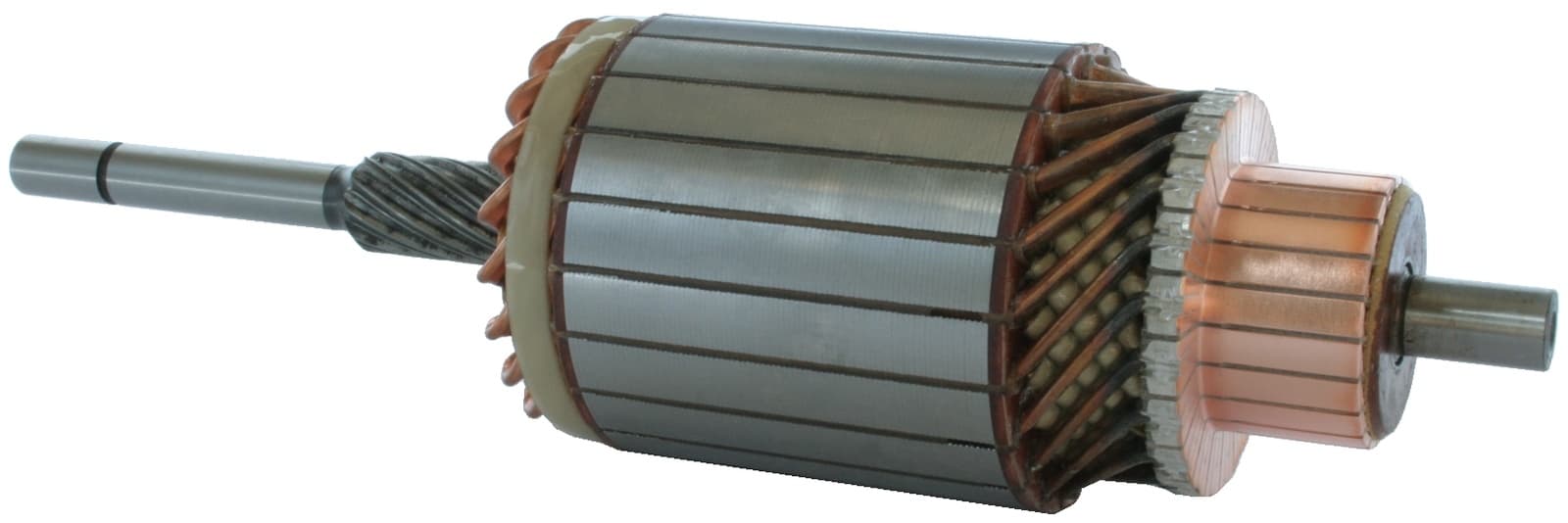

F032130115 - ArmatureTrade number 130115
kW 2.4, Voltage 12, Commutator Diameter 42.80, Commutator Distance 23.40, OD/spline/teeth 18.00, No./bars 21, Commutator Height 35.70, Bar length 10.00, Bar Distance 3.60, Shaft length 290.00, Bar Cross Distance 42.30, Bar Lane Height 22.50, Spline Teeth Length 25.50, Commutator Inner Diameter 16.00, Core Diameter 75.00, Commutator End Shaft Diameter 14.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 63.00, Drive End Inside Shaft Diameter 14.10, Rotation CW, Remarks 9 V: HC-CARGO 133087., Shaft Diameter 18.85

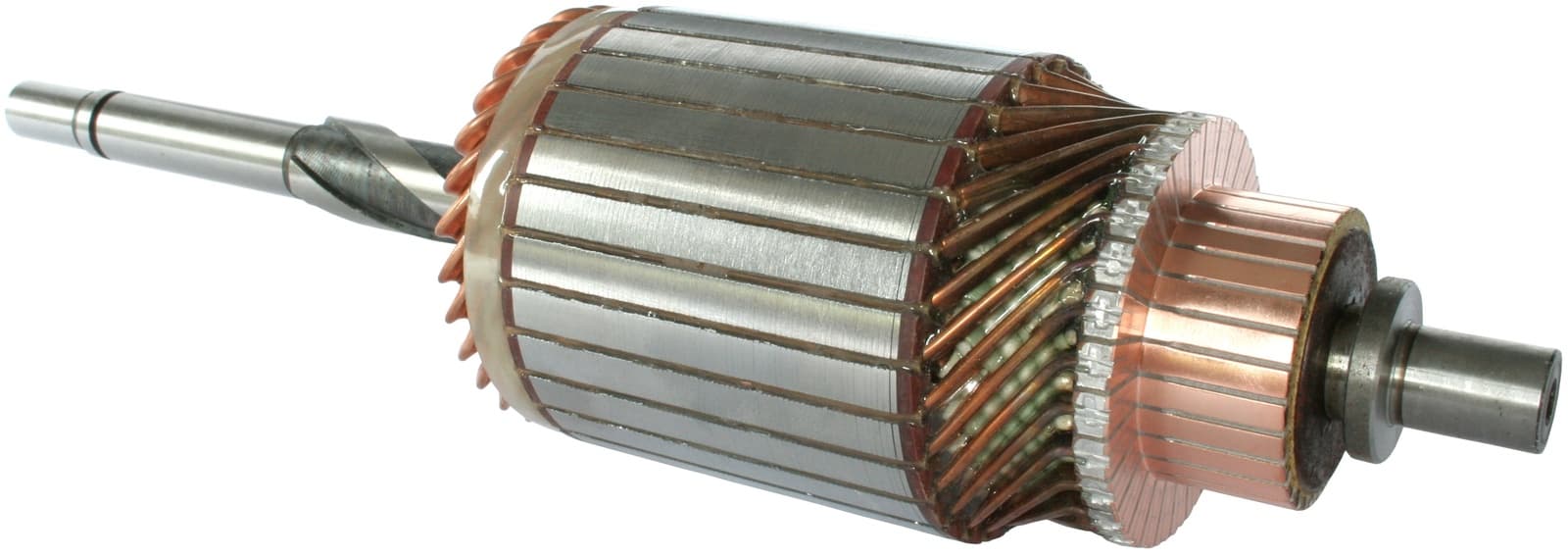

F032130116 - ArmatureTrade number 130116
kW 2.0, Voltage 12, Commutator Diameter 42.80, Commutator Distance 23.30, OD/spline/teeth 18.00, No./bars 21, Commutator Height 35.70, Bar length 10.00, Bar Distance 3.60, Core Diameter 75.00, Shaft length 285.00, Bar Cross Distance 42.30, Commutator End Shaft Diameter 14.00, Bar Lane Height 22.50, Spline Teeth Length 24.50, No./splines 10, Drive End Inside Shaft Diameter Outside 12.00, Commutator Outer Diameter 63.00, Drive End Inside Shaft Diameter 12.00, Rotation CW, Remarks 9 V: HC-CARGO 131934., Shaft Diameter 18.85

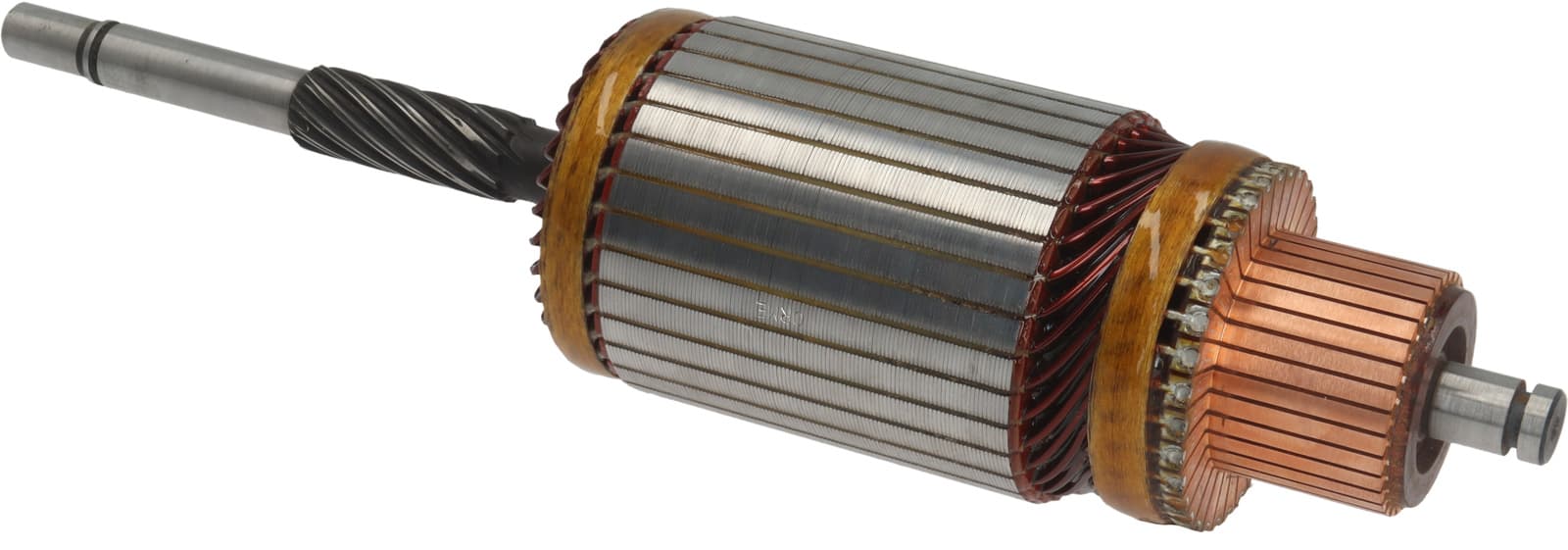

F032130117 - ArmatureTrade number 130117
kW 2.4/2.7, Voltage 12, Commutator Diameter 42.80, Commutator Distance 23.30, OD/spline/teeth 18.10, No./bars 21, Commutator Height 35.70, Bar length 10.00, Bar Distance 3.60, Shaft length 312.00, Bar Cross Distance 42.30, Bar Lane Height 22.50, Spline Teeth Length 36.00, Commutator Inner Diameter 16.00, Core Diameter 75.00, Commutator End Shaft Diameter 14.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 63.00, Drive End Inside Shaft Diameter 14.15, Rotation CW, Remarks 9 V: HC-CARGO 133088., Shaft Diameter 18.85
F032130118 - ArmatureTrade number 130118
kW 2.3, Voltage 12, Commutator Diameter 43.20, Commutator Distance 28.00, OD/spline/teeth 18.50, No./bars 21, Commutator Height 36.50, Bar length 9.00, Commutator Inner Diameter 16.00, Bar Distance 2.55, Core Diameter 73.00, Shaft length 335.00, Bar Cross Distance 48.00, Commutator End Shaft Diameter 14.00, Bar Lane Height 27.20, Spline Teeth Length 64.00, No./splines 3, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 66.20, Drive End Inside Shaft Diameter 14.15, Rotation CW, Remarks 9 V: HC-CARGO 133089., Shaft Diameter 18.85
F032130119 - ArmatureTrade number 130119
kW 4.0, Voltage 24, Commutator Diameter 46.10, Commutator Distance 23.30, OD/spline/teeth 17.90, No./bars 33, Commutator Height 43.60, Bar length 10.50, Commutator Inner Diameter 18.90, Bar Distance 2.30, Core Diameter 75.00, Shaft length 333.00, Bar Cross Distance 46.20, Commutator End Shaft Diameter 14.00, Bar Lane Height 30.30, Spline Teeth Length 67.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 68.10, Drive End Inside Shaft Diameter 14.15, Rotation CW, Remarks 18 V: HC-CARGO 137286., Shaft Diameter 18.75
